Repair procedures: Removal

Tightening torque:

7.8 ~ 9.8N.m (0.8 ~ 1.0kgf.m, 5.8 ~ 7.2 lb-ft)

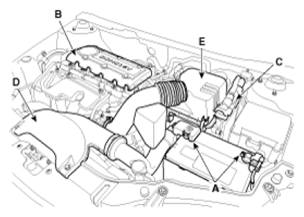

Fig 1: Air Cleaner Assembly, Battery, Engine Cover, ECM Connector & Air Duct

Courtesy of KIA MOTORS AMERICA, INC.

1. Disconnect the ETC connector (A) and knock sensor connector (B).
2. Disconnect the injector connectors (C).
3. Remove the wiring harness mounting bolts (D).

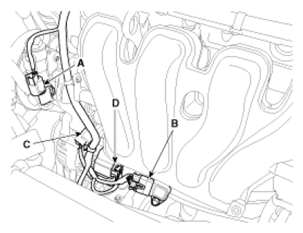

   Fig 2: Wiring Harness Mounting Bolts, ETC, Knock & Injector Connectors

   Courtesy of KIA MOTORS AMERICA, INC.
4. Disconnect the power steering fluid pressure switch connector (A).
5. Disconnect the MAP sensor connector (B).
6. Disconnect the OPS connector (C).
7. Disconnect the alternator connector (D).
8. Disconnect the A/C switch connector from the compressor.

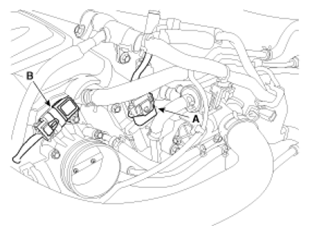

   Fig 3: Power Steering Fluid Pressure Switch, MAP Sensor & Alternator Connectors

   Courtesy of KIA MOTORS AMERICA, INC.
9. Disconnect the VIS connector.
10. Disconnect the VCM connector (A) and MAP sensor connector (B).
    Fig 4: VCM & MAP Sensor Connectors

    Courtesy of KIA MOTORS AMERICA, INC.
11. Disconnect the intake OCV connector (A).
    Fig 5: Intake OCV Connector

    Courtesy of KIA MOTORS AMERICA, INC.
12. Disconnect the CMP sensor connector (A) and fuel hose (B).

Fig 6: CMP Sensor Connector & Fuel Hose

Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque:

18.6 ~ 23.5N.m (1.9 ~ 2.4kgf.m, 13.7 ~ 17.4lb-ft)

Fig 7: Intake Manifold Stay

Courtesy of KIA MOTORS AMERICA, INC.

1. Disconnect the PCV hose (A).
2. Disconnect the PCSV hose (B) and the brake vacuum hose (C).
3. Disconnect the coolant hoses (D) from the throttle body.
4. Remove the intake manifold assembly (E).

Tightening torque:

18.6 ~ 23.5N.m (1.9 ~ 2.4kgf.m, 13.7 ~ 17.4lb-ft)

(2.0L ULEV)

Fig 8: PCV Hose, PCSV Hose, Brake Vacuum Hose & Coolant Hoses (2.0 ULEV)

Courtesy of KIA MOTORS AMERICA, INC.

(2.0L SULEV & 2.4L ALL)

Fig 9: PCV Hose, PCSV Hose, Brake Vacuum Hose & Coolant Hoses (2.0 SULEV & 2.0L All)

Courtesy of KIA MOTORS AMERICA, INC.
