FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

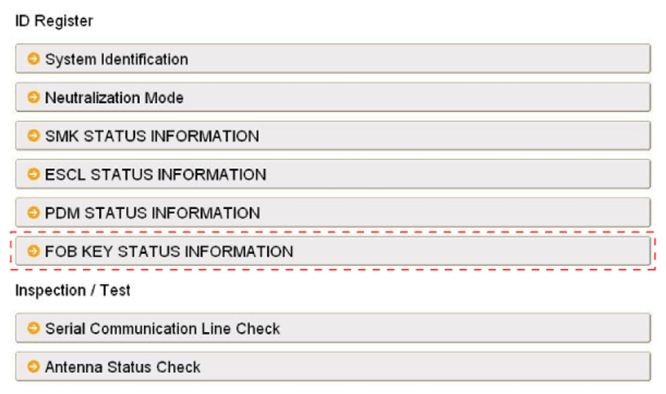

    Fig 1: Screen Display - Selecting FOB Key Status Information
    G07369108Courtesy of KIA MOTORS AMERICA, INC.

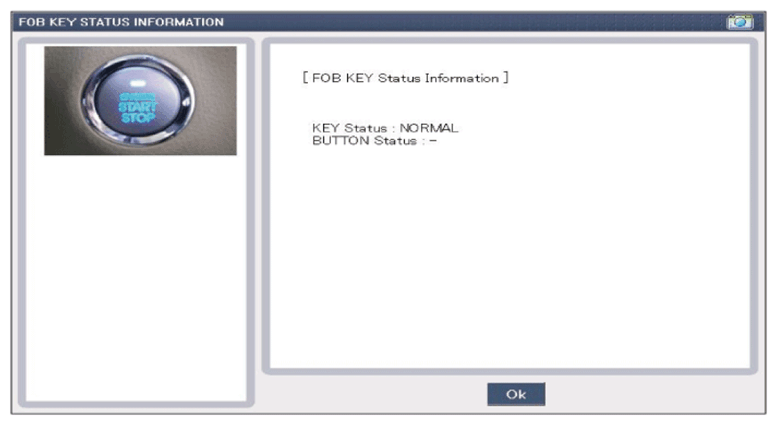

    Fig 2: Screen Display - FOB Key Status Information
    G07369109Courtesy of KIA MOTORS AMERICA, INC.
