Component Inspection

Check CMPS, CKPS
1. IG KEY "OFF".
2. Select "vehicle scopemeter" in the menu, and connect channel A of scantool with signal terminal of CKPS harness connector.
3. Start engine, and check the signal waveforms.
  Specification: Refer to SIGNAL WAVEFORM & DATA

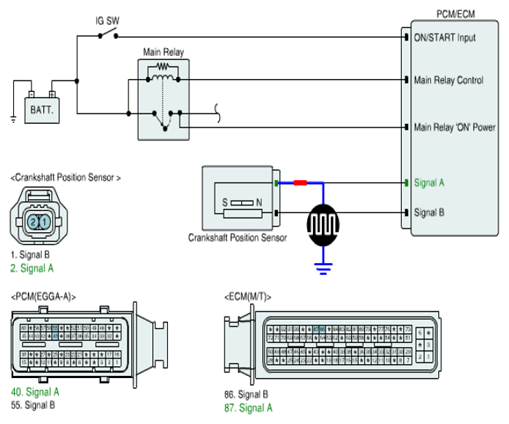

  Fig 1: Checking Signal Waveforms Of CKPS Signal Terminal
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured signal waveforms of CKPS normal?
  YES

  Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage. Check for poor connections, and check the related circuit between ECM and component thoroughly. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  NO

  Substitute with a known-good CKPS and check for proper operation. If the problem is corrected, replace CKPS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
