Ground Circuit Inspection

Check for Open or Short in signal circuit
1. IG KEY "OFF".
2. Disconnect TPS connector.
3. IG KEY "ON" & ENG "OFF"
4. Measure the voltage between power terminal of TPS harness connector and chassis ground. (A)
5. Measure the voltage between power and ground terminals of TPS harness connector and chassis ground. (B)
  Specification : "A" - "B" = Below 200mV

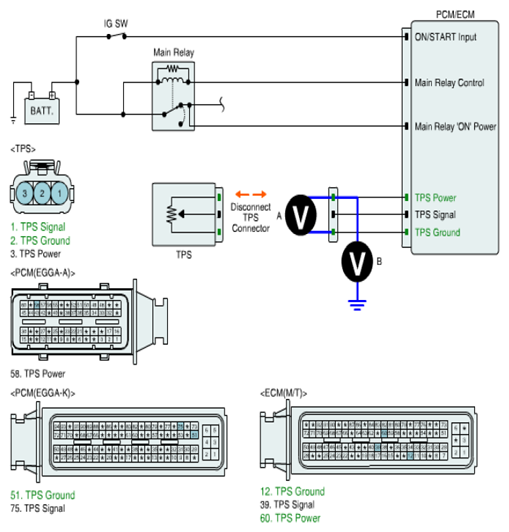

  Fig 1: Measuring Voltage Between Power Terminal Of TPS Harness Connector & Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
6. Is the measured voltage within specification?
  YES

  Go to "SIGNAL CIRCUIT INSPECTION " procedure.

  NO

  Check for Open in ground circuit. Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
