Repair procedures: Reassembly

After inserting the snap ring to the back side of the low & reverse planetary gear assembly, install the overdrive planetary carrier assembly.

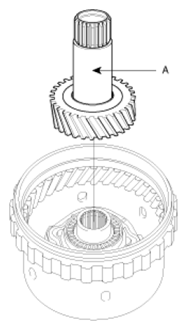

Install the thrust bearing and the underdrive sun gear (A).

Fig 1: Identifying Thrust Bearing And Underdrive Sun Gear
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Pay attention to the direction of the thrust bearing when installing it.

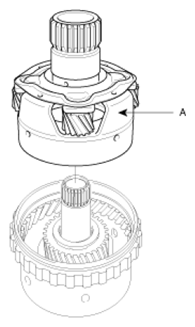

Install the thrust bearing and the output planetary carrier assembly (A).

Fig 2: Identifying Thrust Bearing And Output Planetary Carrier Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Insert the snap ring (A).

Fig 3: Identifying Snap Ring
Courtesy of KIA MOTORS AMERICA, INC.
Apply ATF on the inner/outer surface of the one way clutch (A) end bearing and assemble the bearing with the arrow mark on the inner race facing to rear.

Fig 4: Identifying One Way Clutch
Courtesy of KIA MOTORS AMERICA, INC.
Install the stopper plate (A).

Fig 5: Identifying Stopper Plate
