Components (1)

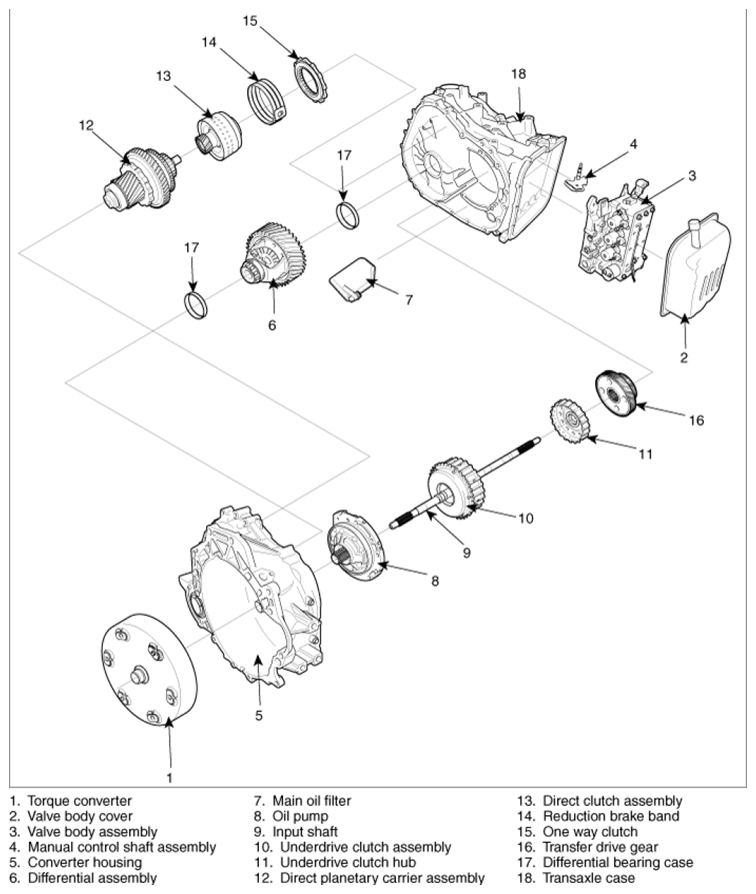

Fig 1: Identifying Automatic Transaxle Components (1 Of 2)

G06843626

Courtesy of KIA MOTORS AMERICA, INC.
