Components and Components Location: Components

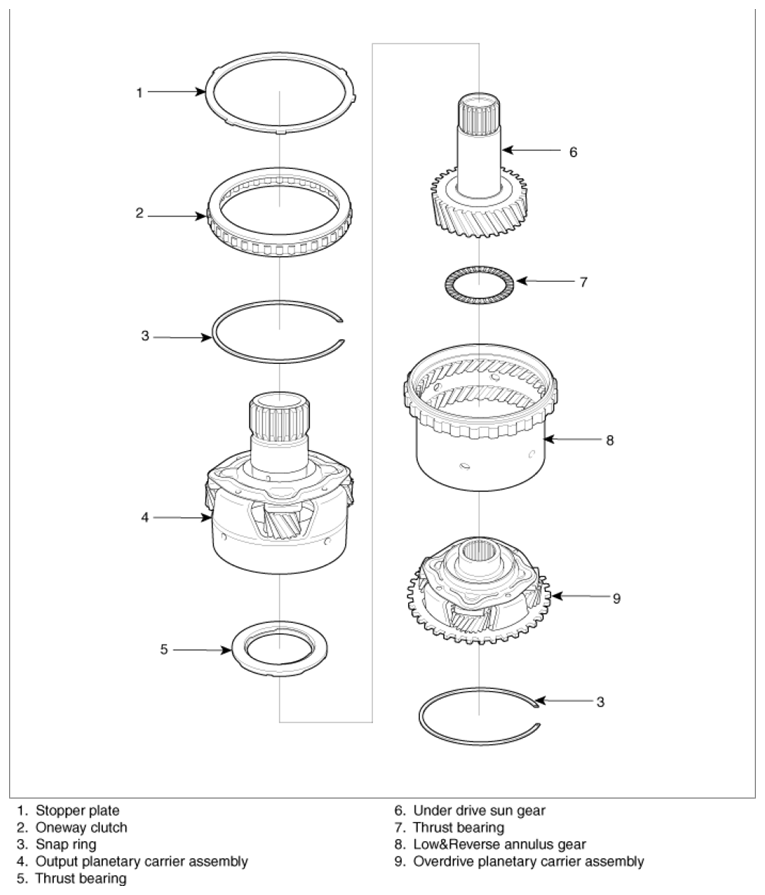

Fig 1: Exploded View Of Planetary Gear

G06799483

Courtesy of KIA MOTORS AMERICA, INC.
