Circuit Diagram (2)

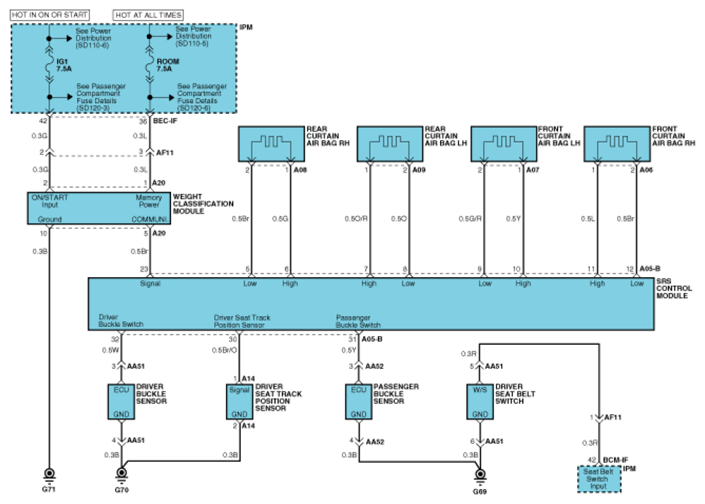

Fig 1: SRS Control Module - Circuit Diagram (2 Of 3)
G06838322Courtesy of KIA MOTORS AMERICA, INC.
