Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System
>>
Purge Control Solenoid Valve (PCSV)
>>
Repair procedures
>>
Schematic Diagram
Schematic Diagram

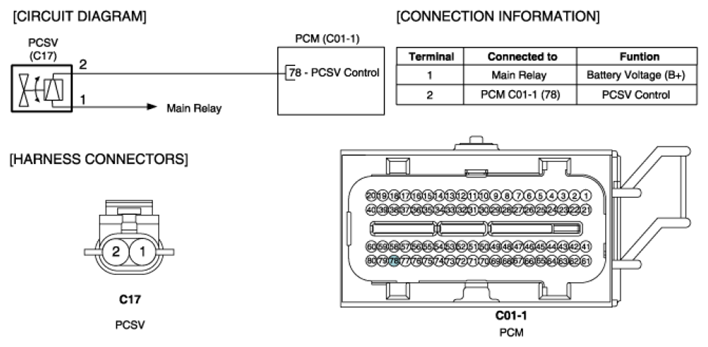

Fig 1: Purge Control Solenoid Valve - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
