Components and Components Location
>>
Components (1)
Components (1)

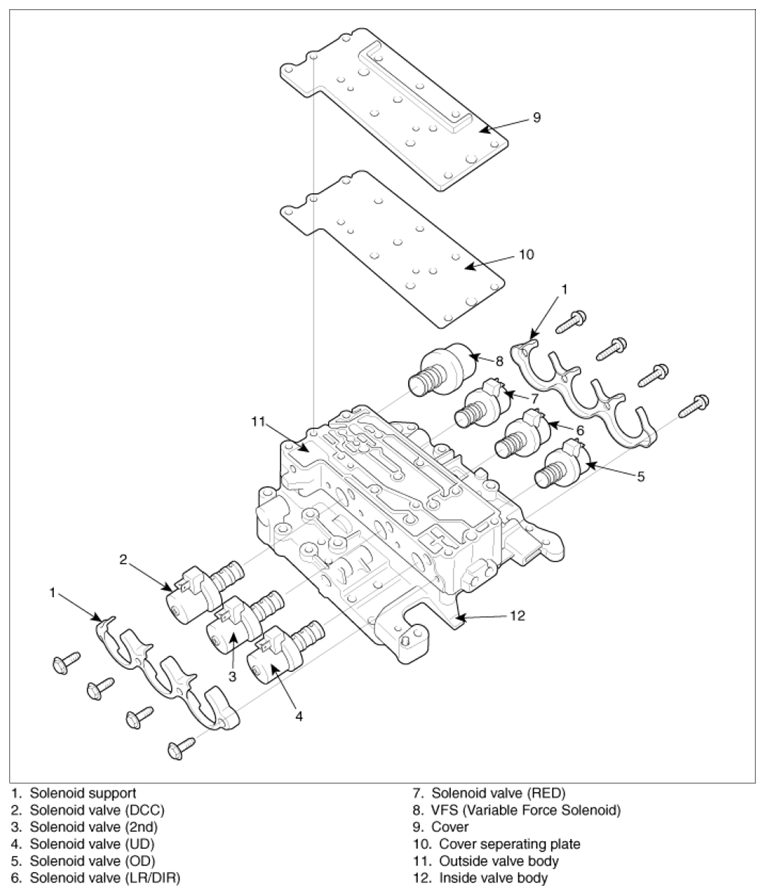

Fig 1: Exploded View Of Valve Body (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

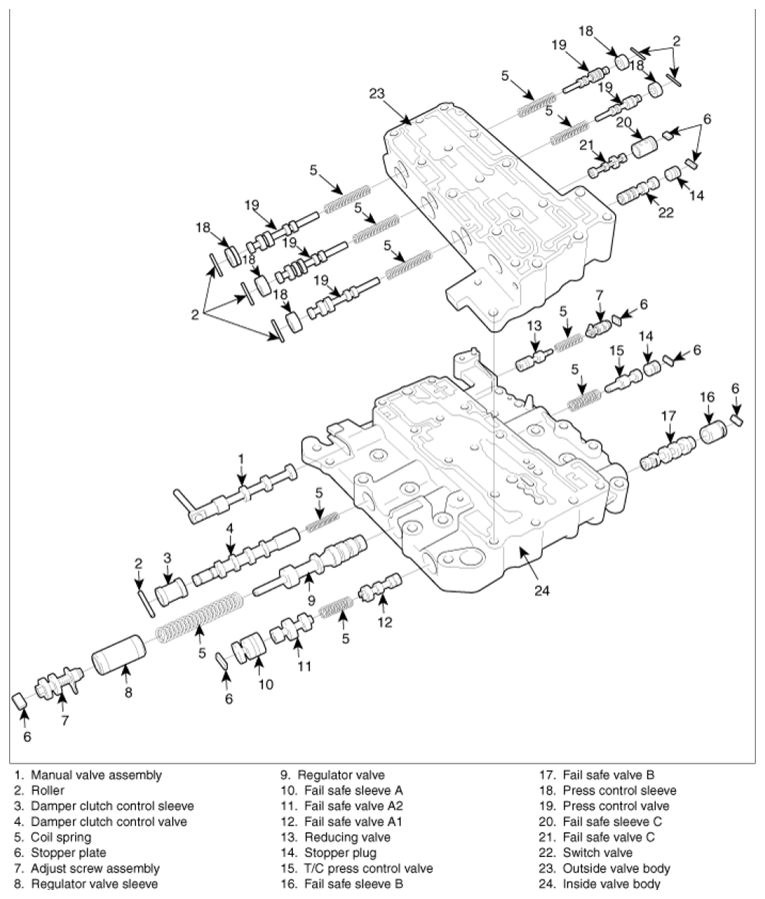

Fig 2: Exploded View Of Valve Body (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
