Home >> Kia >> 2010 >> Rondo LX, 2.7 6 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Gear System >> Carrier >> Components and Components Location >> Components

Components and Components Location: Components

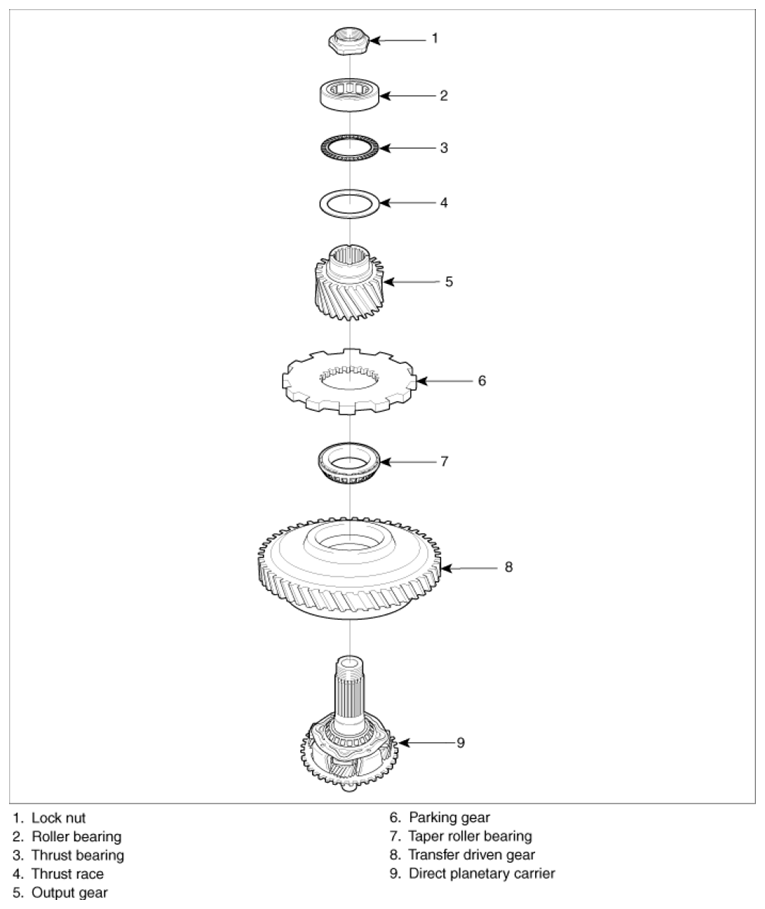

Fig 1: Exploded View Of Carrier

G06801361

Courtesy of KIA MOTORS AMERICA, INC.
