Components and Components Location: Components

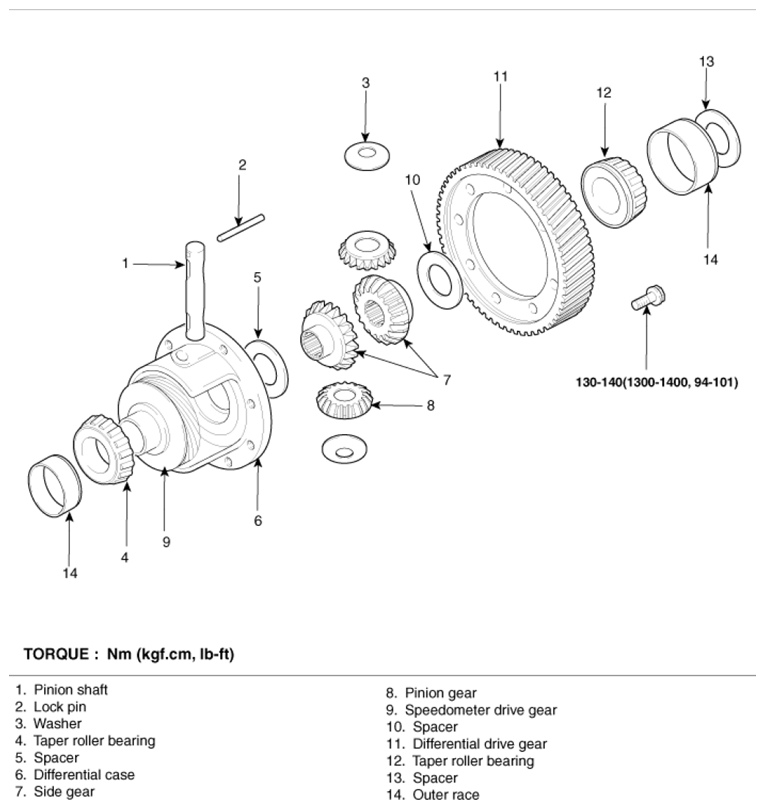

Fig 1: Exploded View Of Differential With Torque Specification

G06801118

Courtesy of KIA MOTORS AMERICA, INC.
