Components (1)

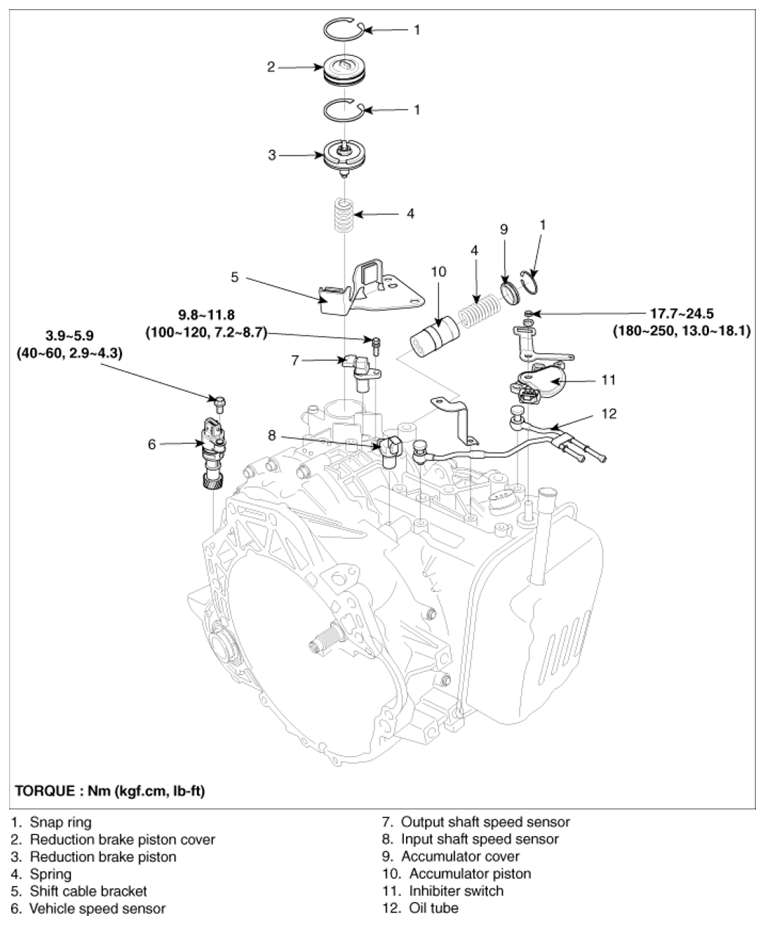

Fig 1: Exploded View Of Automatic Transaxle With Torque Specification (1 Of 3)
G06801126Courtesy of KIA MOTORS AMERICA, INC.

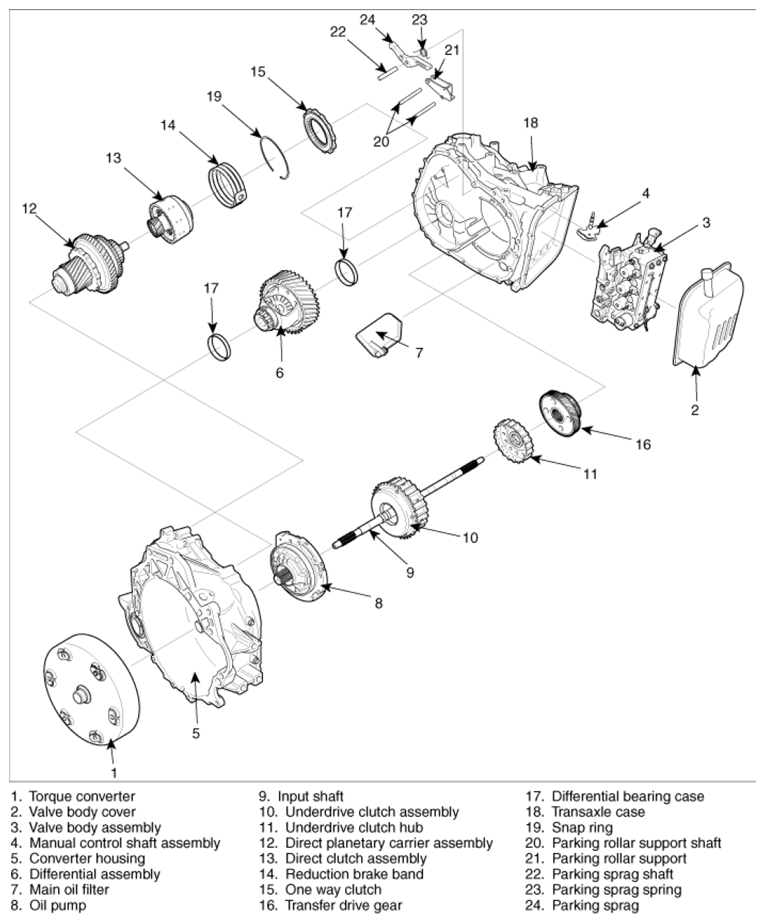

Fig 2: Exploded View Of Automatic Transaxle With Torque Specification (2 Of 3)
G06801127Courtesy of KIA MOTORS AMERICA, INC.

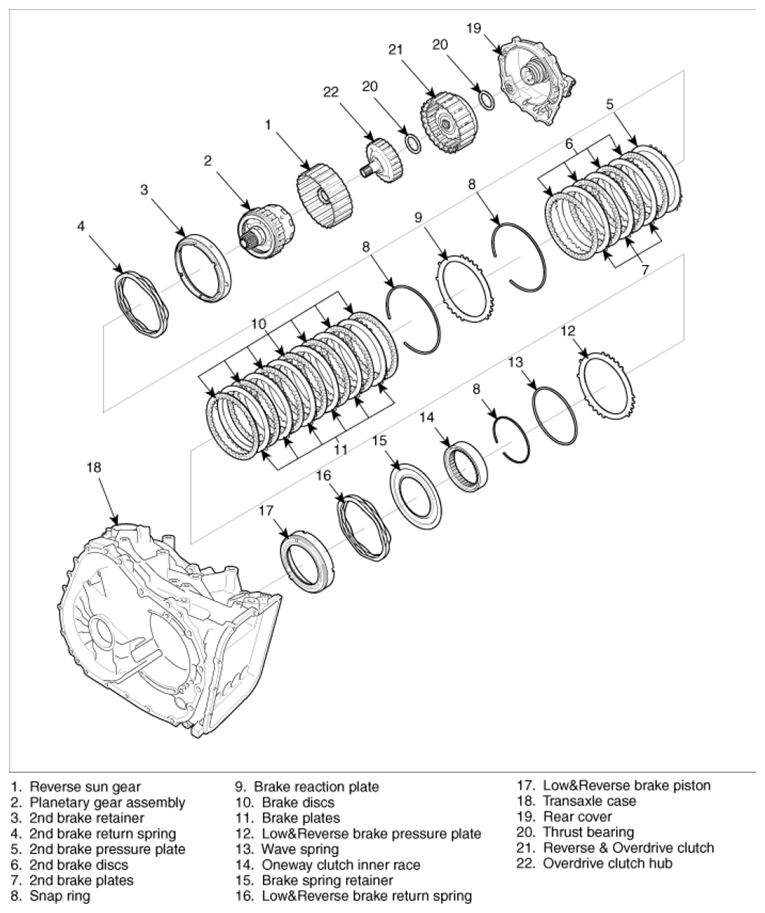

Fig 3: Exploded View Of Automatic Transaxle With Torque Specification (3 Of 3)
G06801128Courtesy of KIA MOTORS AMERICA, INC.
