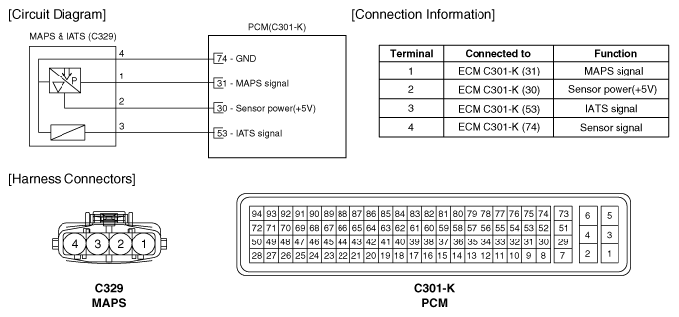

Home >> Kia >> 2010 >> Rondo LX, 2.4 9 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System -- 2.4L >> Intake Air Temperature Sensor (IATS) >> Schematic Diagrams >> Circuit Diagram
