Power Window Main Switch
Power Window Main Switch

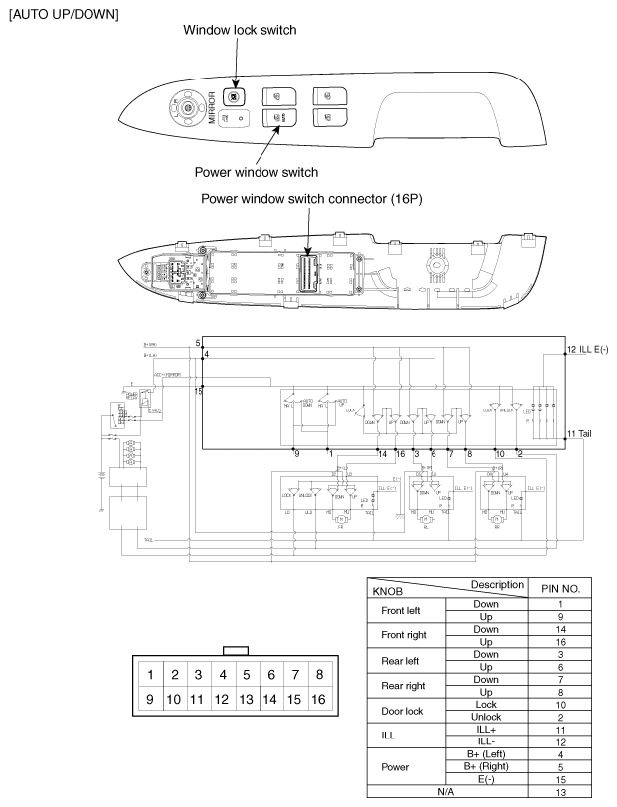

Fig 1: Identifying Power Window Main Switch, Connector, & Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
