Repair Procedures: Inspection

Fig 1: Identifying Ignition Switch Connector & Connector Terminals
G06387194Courtesy of KIA MOTORS AMERICA, INC.
  1. Disconnect the ignition switch connector and key warning switch connector from under the steering column.
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

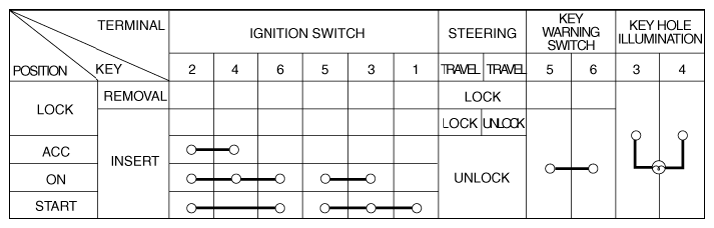

    Fig 2: Continuity Chart
    G06387195Courtesy of KIA MOTORS AMERICA, INC.
