Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

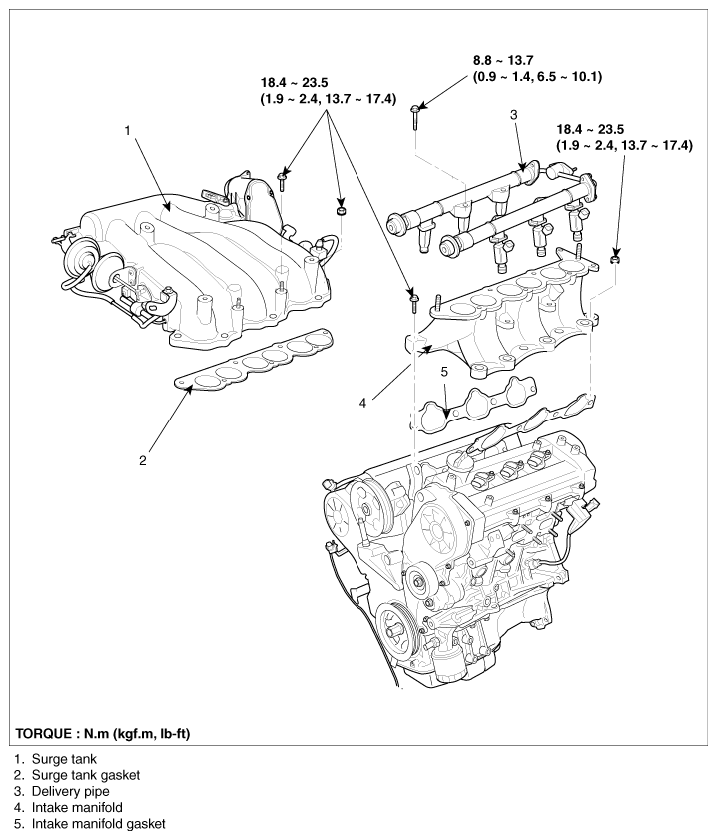

Fig 1: Intake Manifold Replacement Components With Torque Specifications
G06486426Courtesy of KIA MOTORS AMERICA, INC.
