Power Steering Gear Box: Components

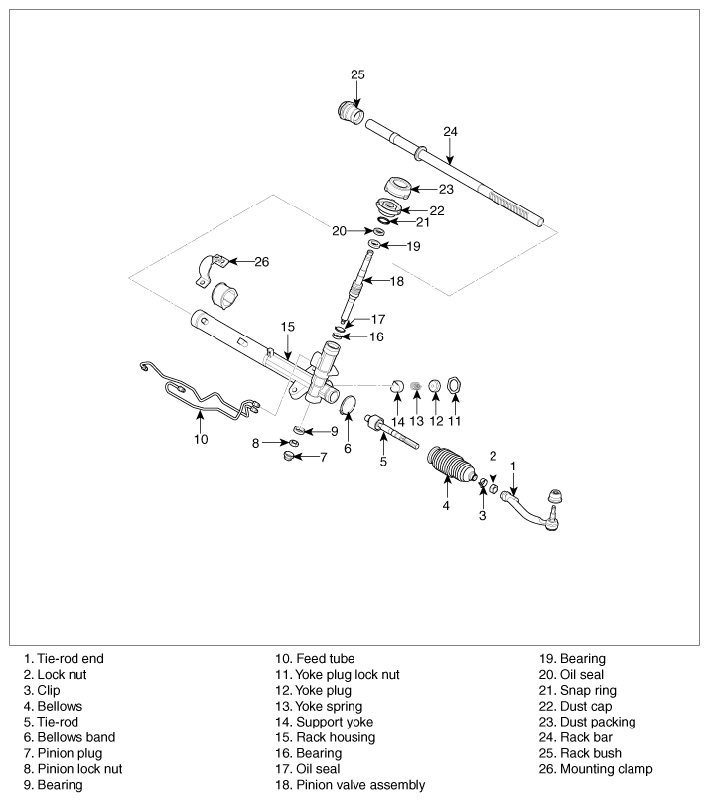

Fig 1: Identifying Power Steering Gear Box Components

G06385045

Courtesy of KIA MOTORS AMERICA, INC.
