Components & Component Location: Components

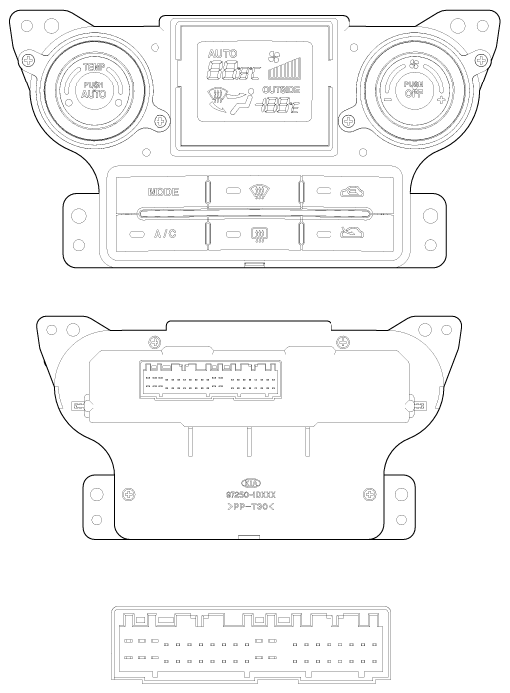

CONNECTOR PIN FUNCTION
CONNECTOR PIN FUNCTIONS
| CONNECTOR | PIN | FUNCTION | CONNECTOR | PIN | FUNCTION |
|---|---|---|---|---|---|
| CONNECTOR (A) | 1 | IG2 | CONNECTOR (B) | 1 | Vref (5V) |
| 2 | TAIL LAMP | 2 | A/C SELECT (HIGH) | ||
| 3 | BATT | 3 | SUN SENSOR | ||
| 4 | P/MOSFET (GATE) | 4 | EVA SENSOR | ||
| 5 | BLWR MOTOR STANDARD | 5 | SPEED SENSOR | ||
| 6 | PTC ON SIGNAL (LOW) | 6 | COMMUNITY (TX) | ||
| 7 | INCAR MOTOR(+) | 7 | HUMIDITY SENSOR | ||
| 8 | HTD (REAR DEF IND) | 8 | INCAR SENSOR | ||
| 9 | TEMP ACT (CCW) | 9 | AQS SIGNAL | ||
| 10 | INTAKE ACT (CCW) | 10 | TEMP ACT F/BACK | ||
| 11 | INCAR MOTOR(-) | 11 | MODE ACT F/BACK | ||
| 12 | RHOSTAT | 12 | AMB SENSOR | ||
| 13 | GND | 13 | SUN SENSOR | ||
| 14 | IG2 | 14 | WATER TEMP SENSOR | ||
| 15 | MODE ACT (CCW) | 15 | INTAKE ACT F/BACK | ||
| 16 | P/MOSFET (DRAIN) | 16 | SENSOR GND | ||
| 17 | A/C THERMO (HIGH) | ||||
| 18 | N.C | ||||
| 19 | PTC RELAY #2 | ||||
| 20 | PTC RELAY #3 | ||||
| 21 | MODE ACT (CW) | ||||
| 22 | TEMP ACT (CW) | ||||
| 23 | INTAKE ACT (CW) | ||||
| 24 | BLWE SELECT (LOW) | ||||
| 25 | REAR DEF S/W (LOW) | ||||
| 26 | GND |
