Circuit Diagram (Steering Wheel Speed Angle Sensor)

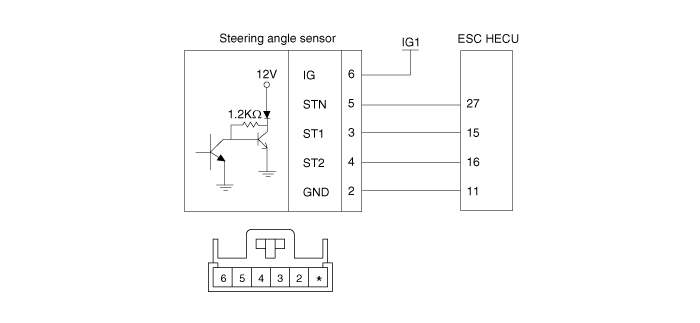

Fig 1: Steering Wheel Speed Angle Sensor - Circuit Diagram

G00492371

Courtesy of KIA MOTORS AMERICA, INC.
