Home >> Kia >> 2010 >> Rio5 SX, Automatic >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Troubleshooting >> Troubleshooting

Power Windows: Troubleshooting: Troubleshooting

  1. No windows operate from the main switch on the driver door.

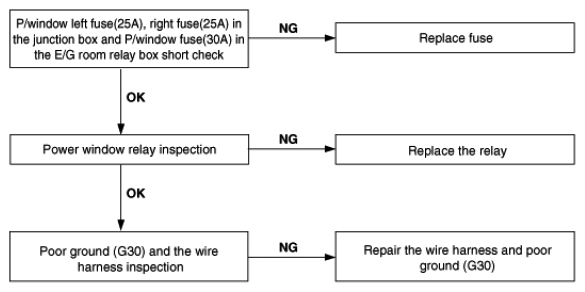

    Fig 1: Troubleshooting Chart - No Windows Operate From Main Switch On Driver Door
    G06832237Courtesy of KIA MOTORS AMERICA, INC.
  2. Driver side window does not operate.

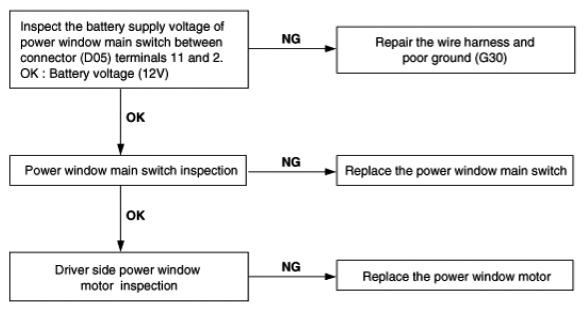

    Fig 2: Troubleshooting Chart - Driver Side Window Does Not Operate
    G06832238Courtesy of KIA MOTORS AMERICA, INC.
  3. Assist side window does not operate.

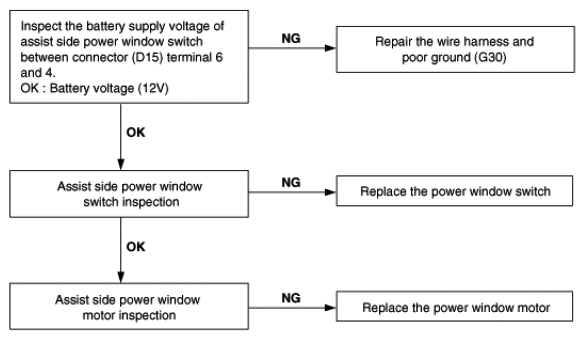

    Fig 3: Troubleshooting Chart - Assist Side Window Does Not Operate
    G06832239Courtesy of KIA MOTORS AMERICA, INC.
