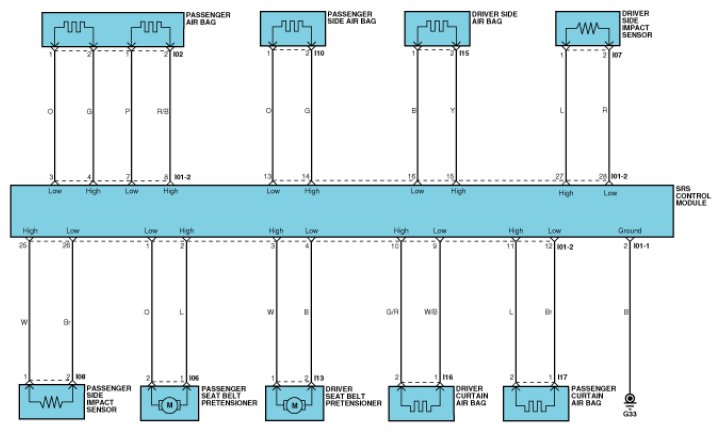

Circuit Diagram (3)
SRSCM CONNECTOR TERMINAL
SRSCM HARNESS CONNECTOR
CONNECTORS REFERENCE CHART
| Pin | Function (Connector A) | Pin | Function (Connector B) |
|---|---|---|---|
| 1 | Airbag Warning Lamp | 1 | Seat Belt Pretensioner [Front-Passenger] Low |
| 2 | Ground | 2 | Seat Belt Pretensioner [Front-Passenger] High |
| 3 | (1st Stage) Passenger Airbag Low | 3 | Seat Belt Pretensioner [Front-Driver] High |
| 4 | (1st Stage) Passenger Airbag High | 4 | Seat Belt Pretensioner [Front-Driver] Low |
| 5 | (1st Stage) Driver Airbag High | 5 | - |
| 6 | (1st Stage) Driver Airbag Low | 6 | - |
| 7 | (2nd Stage) Passenger Airbag Low | 7 | - |
| 8 | (2nd Stage) Passenger Airbag High | 8 | - |
| 9 | (2nd Stage) Driver Airbag High | 9 | Curtain Airbag [Driver] Low |
| 10 | (2nd Stage) Driver Airbag Low | 10 | Curtain Airbag [Driver] High |
| 11 | - | 11 | Curtain Airbag [Passenger] High |
| 12 | - | 12 | Curtain Airbag [Passenger] Low |
| 13 | Ignition | 13 | Side Airbag [Front-Passenger] Low |
| 14 | K-Line Diagnostic | 14 | Side Airbag [Front-Passenger] High |
| 15 | - | 15 | Side Airbag [Front-Driver] High |
| 16 | - | 16 | Side Airbag [Front-Driver] Low |
| 17 | Crash Output | 17 | - |
| 18 | Telltale Lamp | 18 | - |
| 19 | - | 19 | - |
| 20 | Front Impact Sensor [Passenger] Low | 20 | - |
| 21 | Front Impact Sensor [Passenger] High | 21 | - |
| 22 | Front Impact Sensor [Driver] Low | 22 | - |
| 23 | Front Impact Sensor [Driver] High | 23 | Occupant Classification |
| 24 | - | 24 | - |
| 25 | Side Impact Sensor [Passenger] High | ||
| 26 | Side Impact Sensor [Passenger] Low | ||
| 27 | Side Impact Sensor [Driver] High | ||
| 28 | Side Impact Sensor [Driver] Low | ||
| 29 | Seat Track Position Sensor [Passenger] High | ||
| 30 | Seat Track Position Sensor [Driver] High | ||
| 31 | Buckle Switch [Front-Passenger] High | ||
| 32 | Buckle Switch [Driver] High |
