Section 2 (Automatic Transaxle Control System)
>>
Shift Lever
>>
Components and Components Location (A4AF3)
>>
Components (2)
Components (2)
WARNING:
This page is about a different variant/trim than selected.

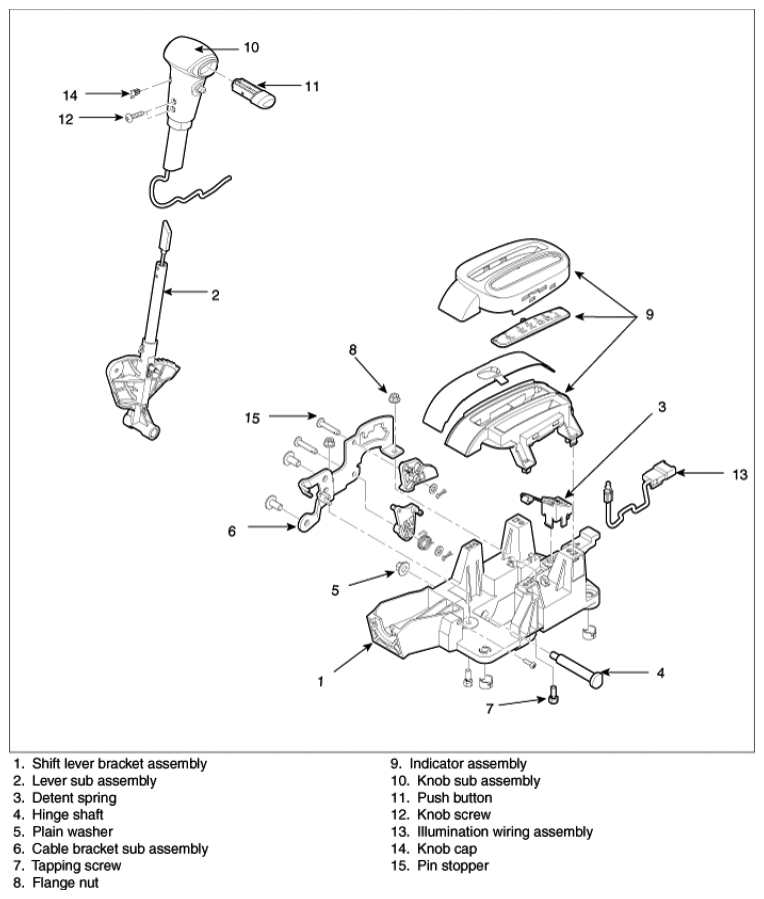

Fig 1: Identifying Shift Lever Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
