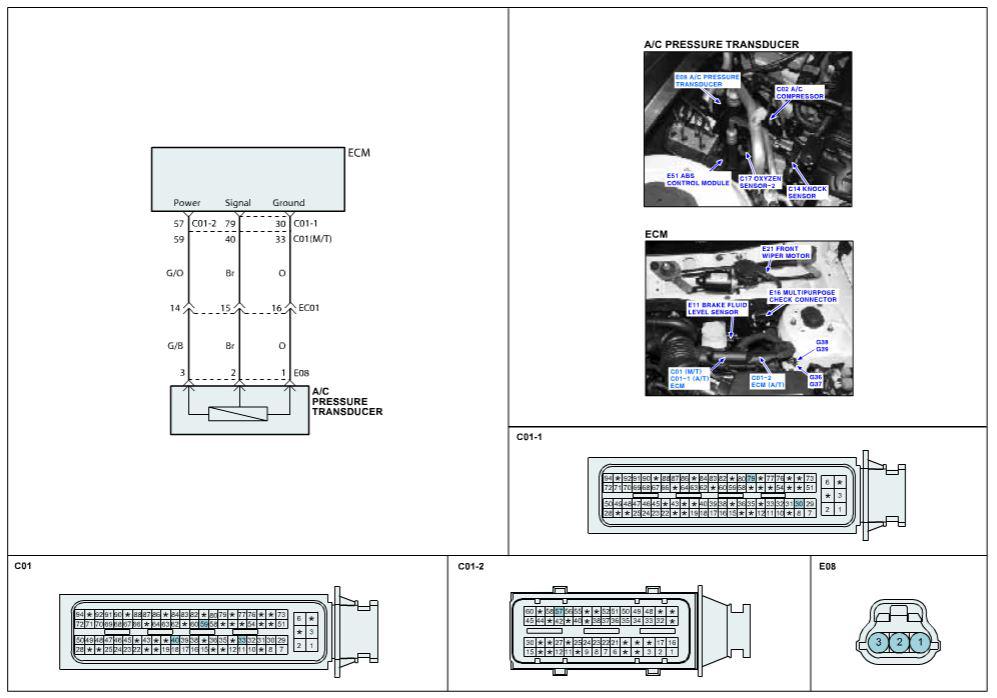

Home >> Kia >> 2010 >> Rio Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (2 Of 2) >> DTC P0532: AC Refrigerant Pressure Sensor A Circuit Low Input >> General Information >> Schematic Diagram
