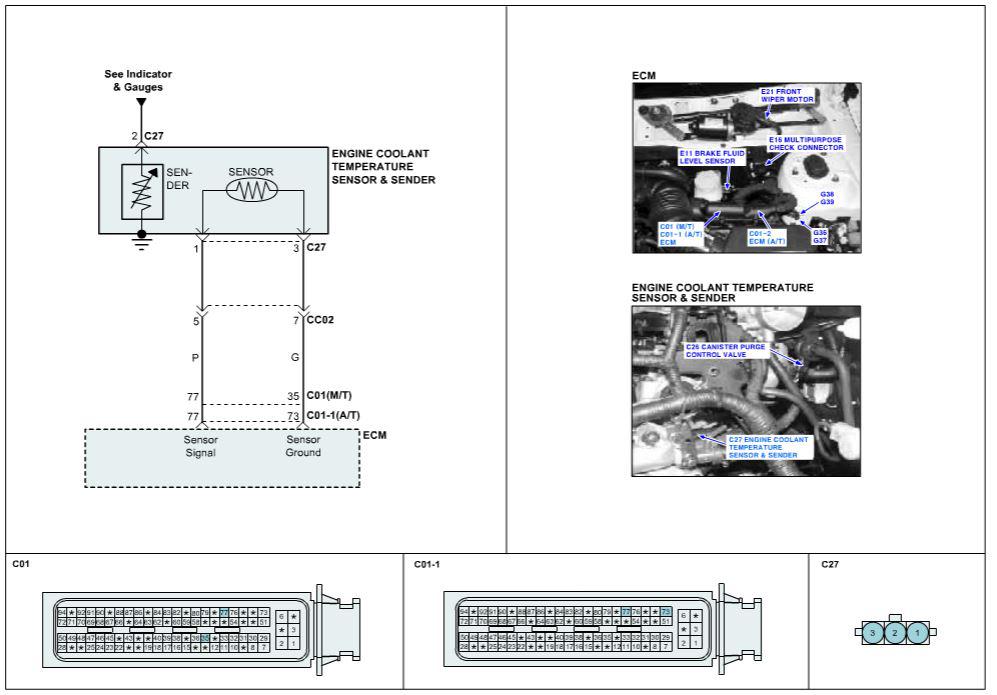

Home >> Kia >> 2010 >> Rio Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 2) >> DTC P0116: Engine Coolant Temperature Circuit Range Performance >> General Information >> Schematic Diagram
