Components and Components Location: Components

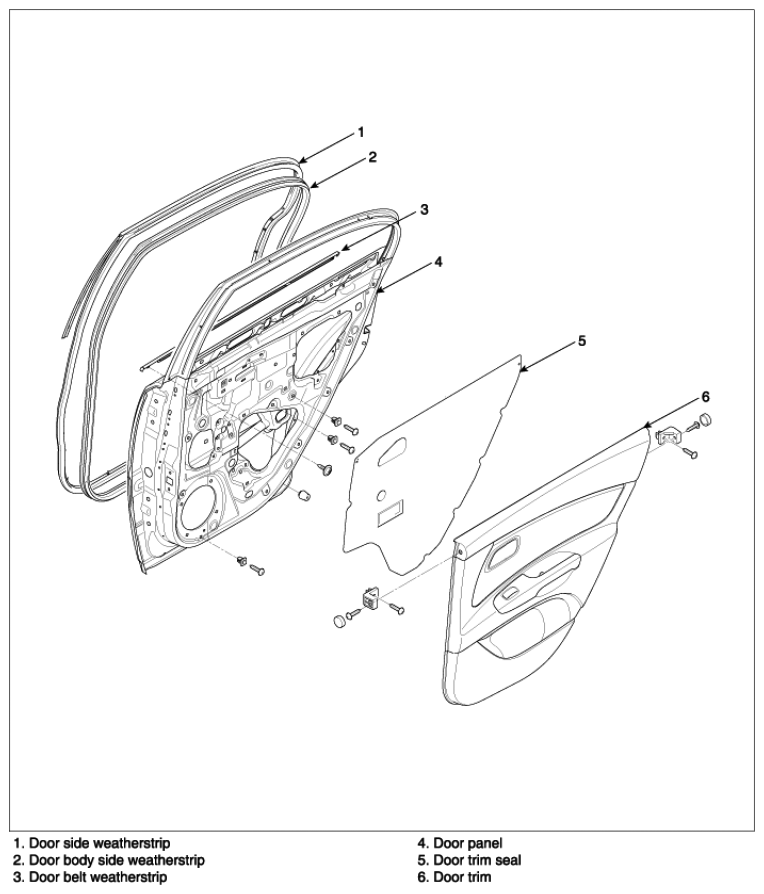

Fig 1: Identifying Rear Door Components Location (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

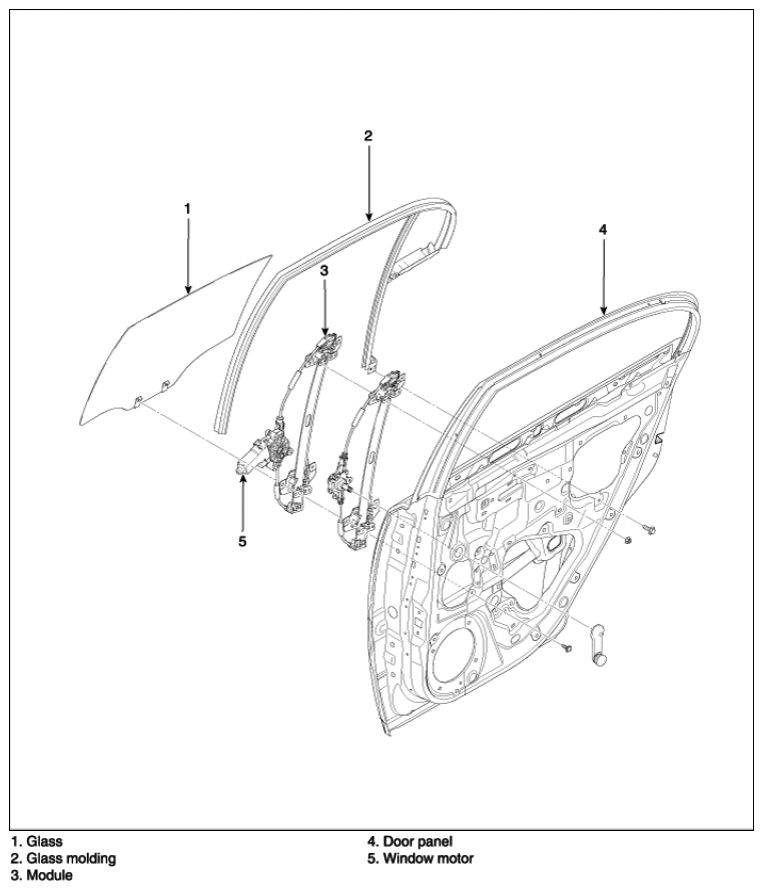

Fig 2: Identifying Rear Door Components Location (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
