Repair procedures: Replacement

NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  • Take care not to scratch the body surface.
  • Put on gloves to protect your hands.
  • Take care not to scratch the body surface.
  1. Remove the wheel guard and mud guard.
  2. Remove the headlamp assembly.
  3. Remove the quadrant inner cover (A).
  4. After loose the mounting bolts, remove the fender (B).
  5. Installation is the reverse of removal.

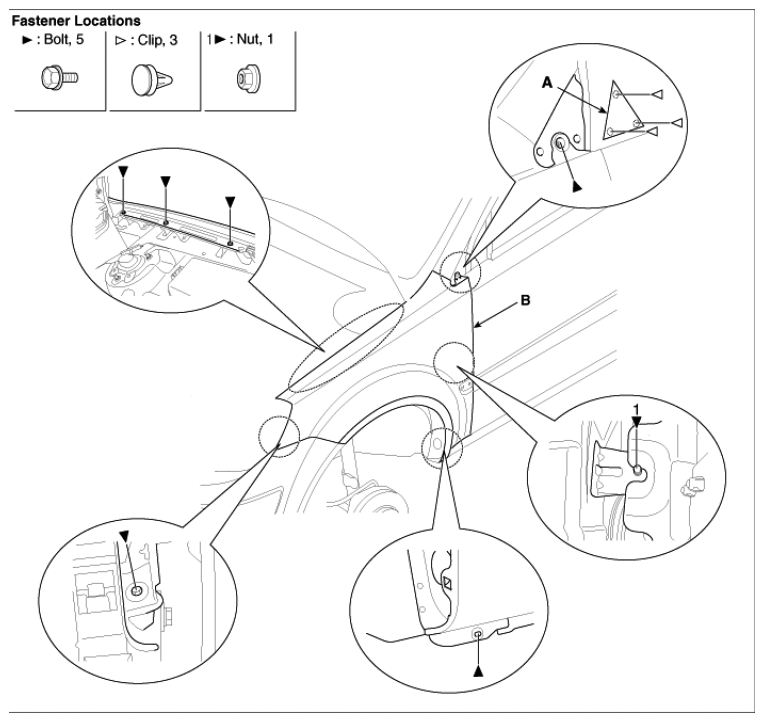

    Fig 1: Identifying Quadrant Inner Cover And Fender With Bolts, Clips And Nut
    G06829375Courtesy of KIA MOTORS AMERICA, INC.
