Battery Diagnostic Flow
Battery Diagnostic Flow
Checking Flow

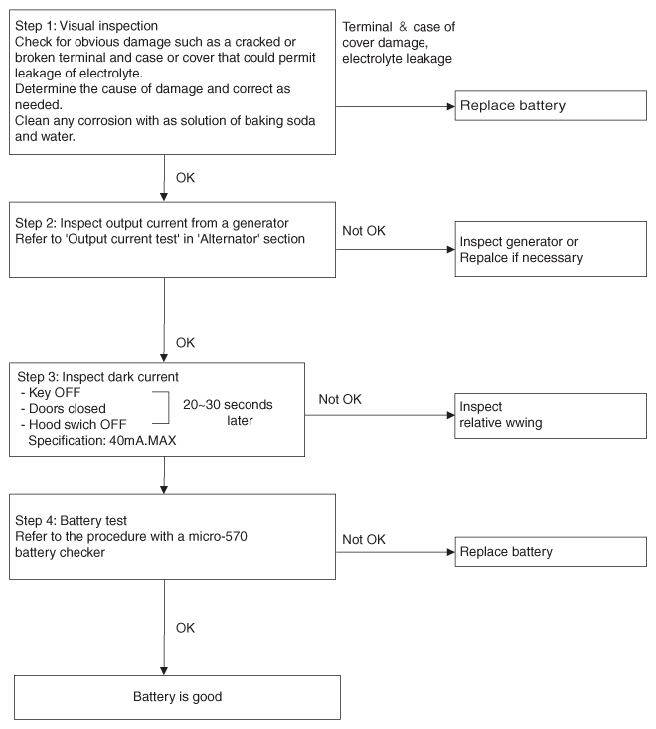

Fig 1: Battery Diagnostic Test - Flow Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
