Home >> Kia >> 2010 >> Magentis SX, 2.7 4 >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Alternator >> Components and Components Location >> Component

Components and Components Location: Component

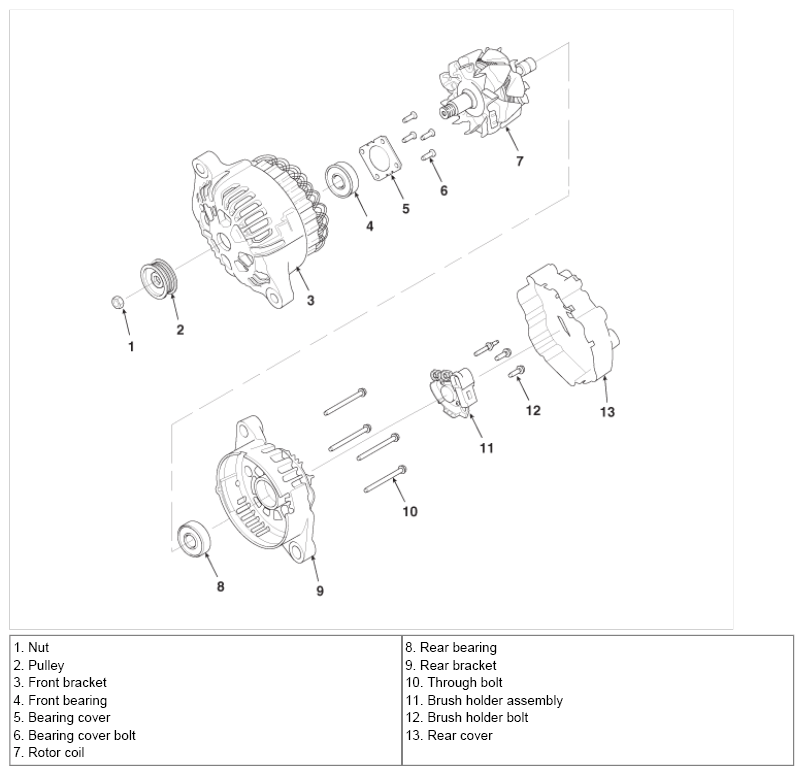

Fig 1: Identifying Alternator Component

G06366032

Courtesy of KIA MOTORS AMERICA, INC.
