Components and Components Location: Components

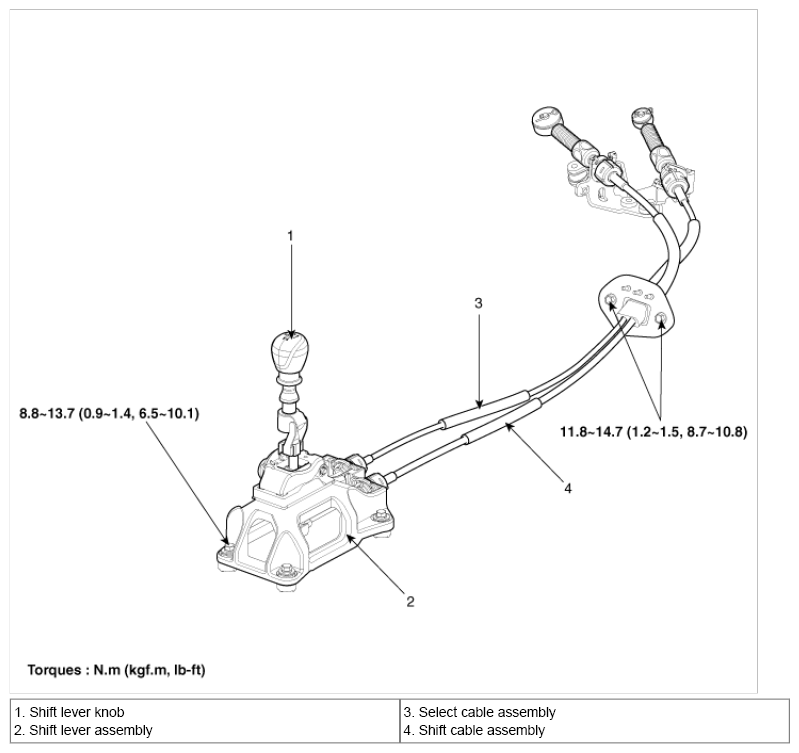

Fig 1: Shift Lever Replacement Components With Torque Specifications

G06496663

Courtesy of KIA MOTORS AMERICA, INC.
