Home >> Kia >> 2010 >> Forte SX, Automatic >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - A5CF2 >> Shift Lever >> Components and Component Locations >> Components

Components and Component Locations: Components

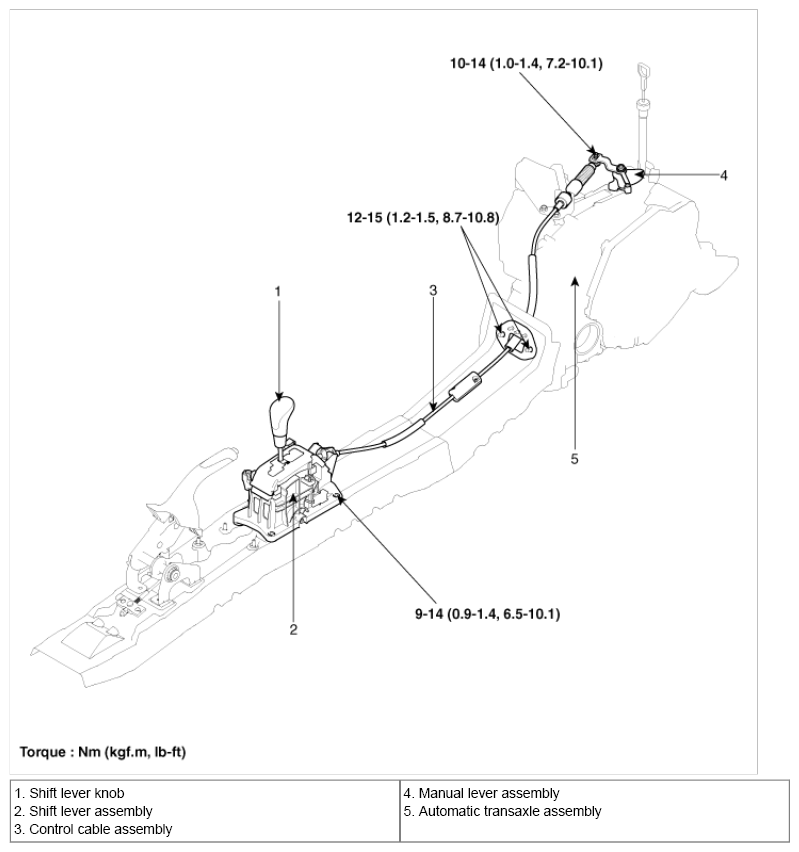

Fig 1: Shift Lever Replacement Components With Torque Specifications

G06494610

Courtesy of KIA MOTORS AMERICA, INC.
