Components and Components Location: Components

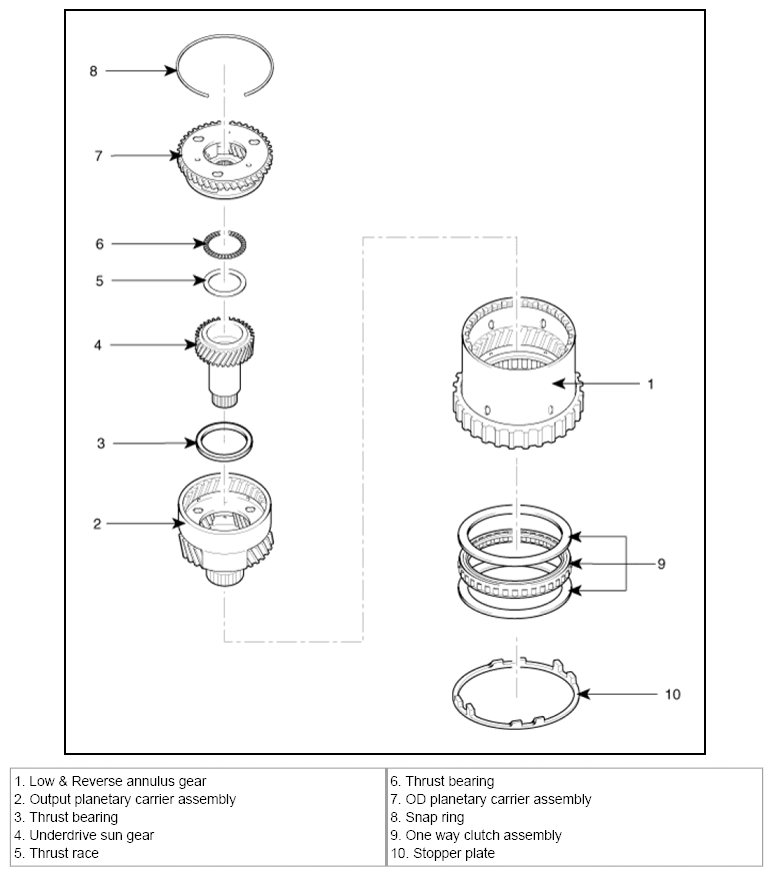

Fig 1: Identifying Planetary Gear Components

G06800926

Courtesy of KIA MOTORS AMERICA, INC.
