Components and Components Location: Components

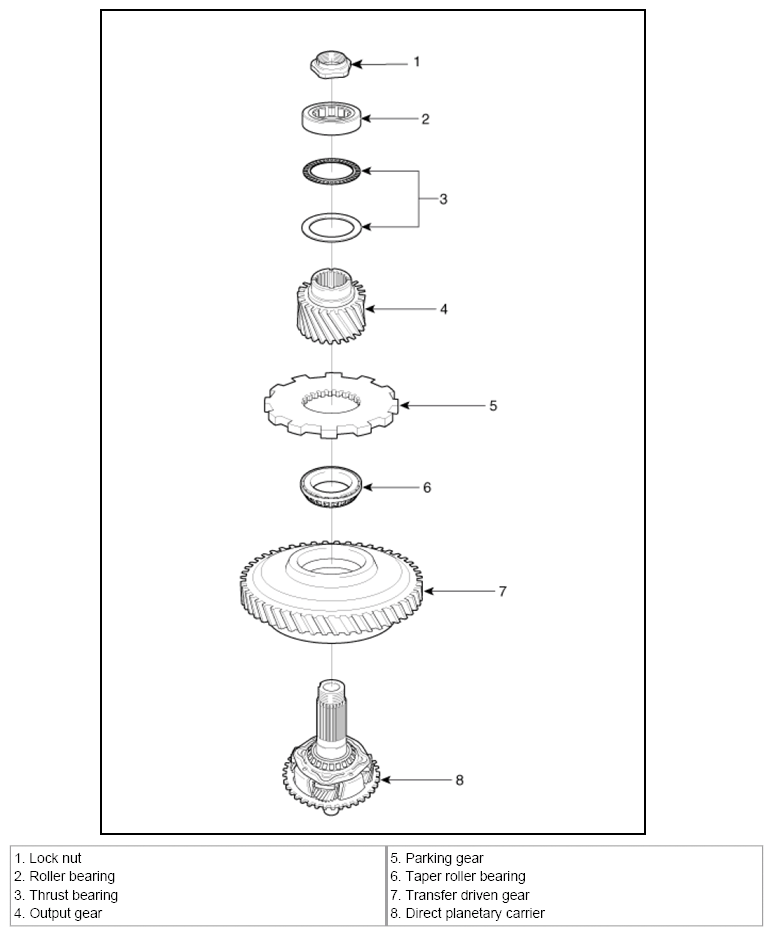

Fig 1: Identifying Direct Planetary Carrier Components

G06800949

Courtesy of KIA MOTORS AMERICA, INC.
