Guide Assembly Replacement

WARNING: This page is about a different car, the 2010 Kia Forte Koup. However, it is still accessible from the selected car via links, so may be relevant.

Remove the sunroof assembly.

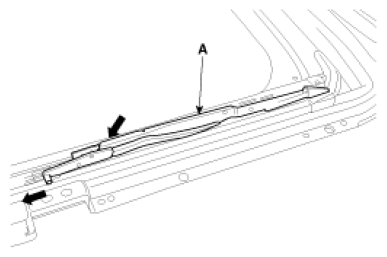

Lower and slide the guide assembly (A) to the rear to remove.

Fig 1: Identifying Guide Assembly
Courtesy of KIA MOTORS AMERICA, INC.

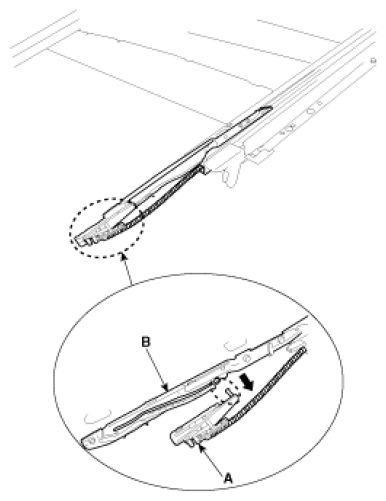

Remove the guide (A) and slide (B).

Fig 2: Identifying Guide & Slide
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:

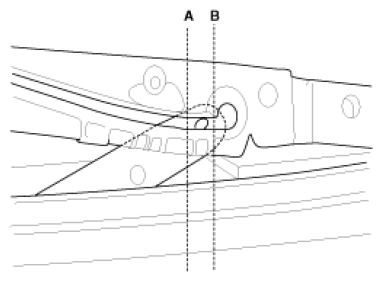

- Make sure to align the slide with the center of "A" and "B"
- Make sure to initialize the motor.

  Fig 3: Identifying Guide & Slide
  Courtesy of KIA MOTORS AMERICA, INC.
