Repair procedures: Replacement

WARNING: This page is about a different car, the 2010 Kia Forte Koup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Be careful not to damage the hood and body.
  • When removing the clips, use a clip remover.
  1. Remove the front bumper mounting screw.
  2. After loosening the fender mounting bolts, remove the fender (A).

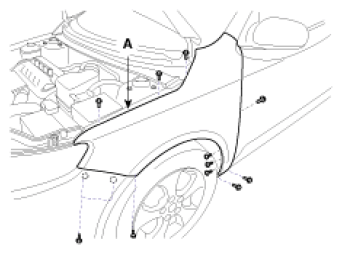

    Fig 1: Identifying Fender Mounting Bolts & Fender
    G06494876Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
