Rear Power Window Motor

  1. Remove (-) negative battery terminal.
  2. Remove the rear door trim.

    (Refer to REAR DOOR .)

  3. Disconnect the connector from the motor.

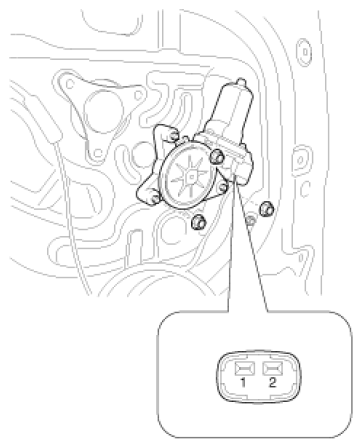

    Fig 1: Identifying Rear Power Window Motor Terminals
    G06496272Courtesy of KIA MOTORS AMERICA, INC.
  4. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.
    Fig 2: Rear Power Window Motor Battery Connection Chart
    G06496273Courtesy of KIA MOTORS AMERICA, INC.
