Exterior Bumper Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear bumper.

    (For Coupe, refer to REAR BUMPER . For Sedan, refer to REAR BUMPER .)

  3. Disconnect the antenna connector (A) and remove the exterior bumper antenna (B) after loosening the nuts (2EA).

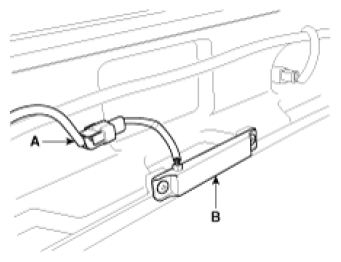

    Fig 1: Identifying Exterior Bumper Antenna & Connector
    G06496100Courtesy of KIA MOTORS AMERICA, INC.
