Repair procedures: Replacement: Removal

NOTE:
  • Put on gloves to protect your hands.
  • Use seat covers to avoid damaging any surfaces.
  1. Remove the following items.
    1. Front pillar trim, both sides.
    2. Windshield wiper arms and cowl cover (Refer to page WINDSHIELD WIPER/WASHER ).

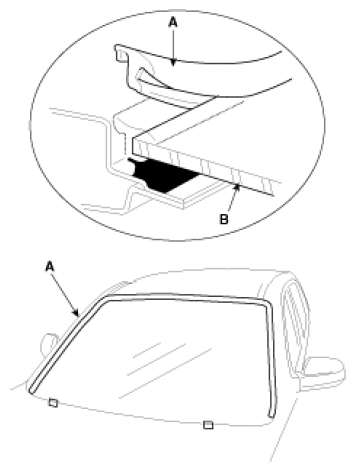

  2. Remove the windshield glass molding (A) from the edge of the windshield (B). If necessary, cut the molding with a utility knife.
  3. Remove the spacer.
    Fig 1: Removing Windshield Glass Molding From Edge Of Windshield
    G06495687Courtesy of KIA MOTORS AMERICA, INC.

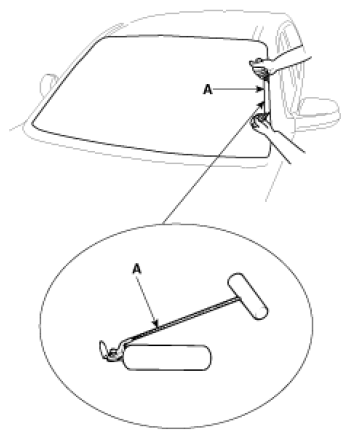

  4. Cut out the windshield sealant using the sealant cutting tool 09861-31100 (A).
    Fig 2: Cutting Out Windshield Sealant
    G06495688Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the windshield (A) carefully using the glass holder (B).
    Fig 3: Removing Windshield
    G06495689Courtesy of KIA MOTORS AMERICA, INC.
