Trunk Trim Replacement

NOTE: Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and Panels.

Remove the trunk lid trim
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.

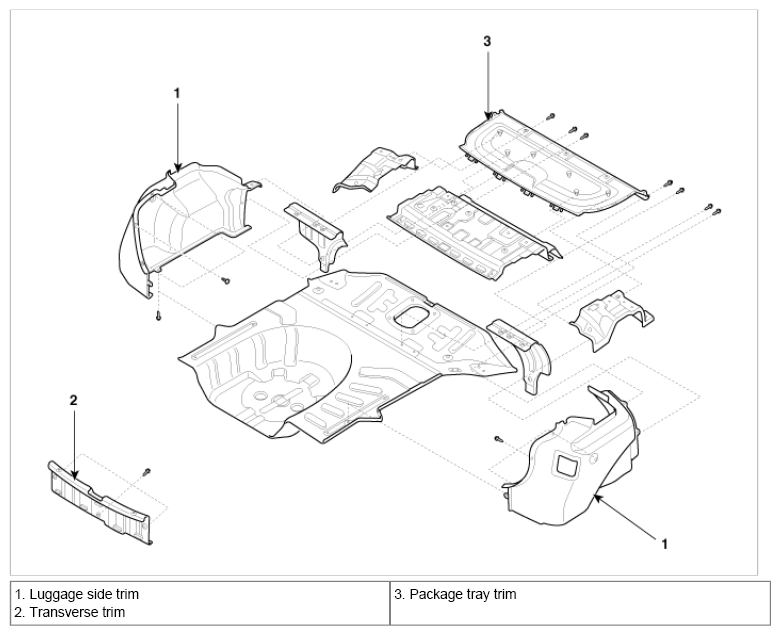

  Fig 1: Identifying Luggage Side Trim, Transverse Trim, & Package Tray Trim
  Courtesy of KIA MOTORS AMERICA, INC.
