Door Outside Handle

Disconnect the negative (-) battery terminal.
Disconnect the connector after removing the door trim.
(For Coupe, refer to FRONT DOOR . For Sedan, refer to FRONT DOOR .)

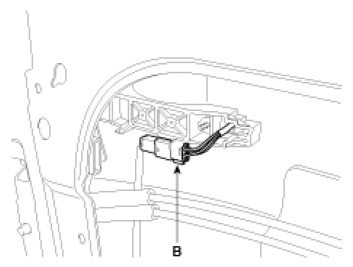

Fig 1: Identifying Connector
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting bolt, then remove the key holder (A).

Fig 2: Identifying Key Holder & Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the outside handle (A) by sliding it rearward.

Fig 3: Identifying Outside Handle
Courtesy of KIA MOTORS AMERICA, INC.
