Repair procedures: Removal

Release the residual pressure in fuel line (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE " ).
Remove the rear seat cushion. (For Coupe, refer to REAR SEAT . For Sedan, refer to REAR SEAT .)
Remove the service cover (A).

Fig 1: Identifying Service Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rubber cover [SULEV].
Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).
Disconnect the fuel feed tube quick-connector (C) and the vapor tube quick-connector (D).
Disconnect the vapor hose (E) [ULEV].
Remove the fuel pump plate cover (F) with the special service tool (SST No.: 09310-2B200), and then remove the fuel pump [SULEV].
Remove the mounting nuts (G), and then remove the fuel pump [ULEV].

[SULEV]

Fig 2: Identifying Fuel Pump Plate Cover, Vapor Hose, Mounting Nuts, & Connectors At Fuel Tank (SULEV)
Courtesy of KIA MOTORS AMERICA, INC.

[ULEV]

Fig 3: Identifying Fuel Pump Plate Cover, Vapor Hose, Mounting Nuts, & Connectors At Fuel Tank (ULEV)
Courtesy of KIA MOTORS AMERICA, INC.

[SULEV]

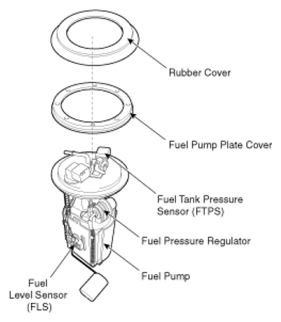

Fig 4: Identifying Fuel Pump Components (SULEV)
Courtesy of KIA MOTORS AMERICA, INC.

[ULEV]

Fig 5: Identifying Fuel Pump Components (ULEV)
Courtesy of KIA MOTORS AMERICA, INC.
