Repair procedures: Removal

  1. Remove the front bumper.

    (For Forte Coupe, refer to FRONT BUMPER . For Forte Sedan, refer to the FRONT BUMPER )

  2. Remove the bolts and disconnect the horn connectors, then remove the low pitch horn (A).

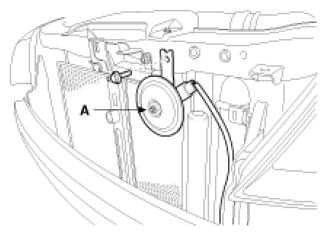

    Fig 1: Identifying Low Pitch Horn
    G06496042Courtesy of KIA MOTORS AMERICA, INC.
