Home >> Kia >> 2010 >> Forte EX, Standard >> Repair and Diagnosis >> Electrical >> Horns >> Repair procedures >> Adjustment

Repair procedures: Adjustment

  1. Operate the horn, and adjust the tone to a suitable level by turning the adjusting screw.
    NOTE: After adjustment, apply a small amount of paint around the screw head to keep it from loosening.

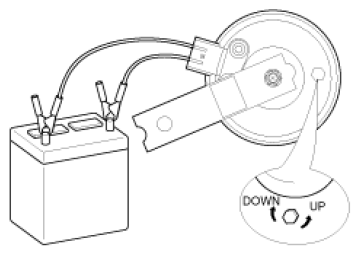

    Fig 1: Adjusting Tone Of Horn By Turning Adjusting Screw
    G06496045Courtesy of KIA MOTORS AMERICA, INC.
