Lower Panel Replacement

  1. Remove the crash pad side cover (A).

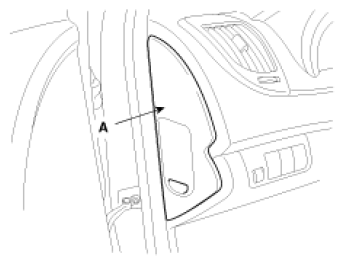

    Fig 1: Identifying Crash Pad Side Cover
    G06495861Courtesy of KIA MOTORS AMERICA, INC.
  2. After loosening the crash pad lower panel mounting screws, then remove the lower panel (A).

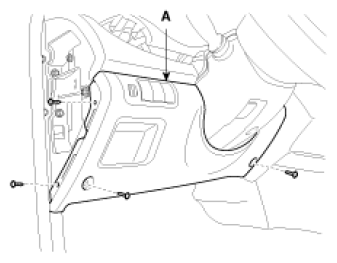

    Fig 2: Identifying Lower Panel
    G06495862Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connector (A) and (B).

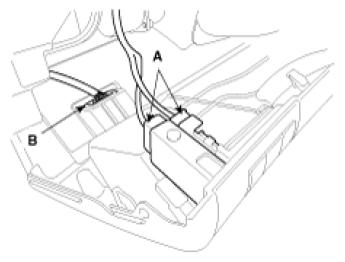

    Fig 3: Identifying Connectors
    G06495863Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the connectors (A).

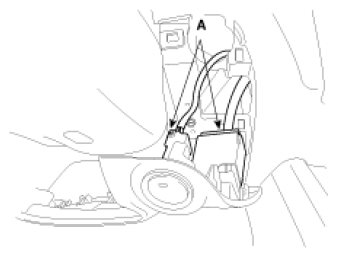

    Fig 4: Identifying Connectors
    G06495864Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse of removal.
