Crash Pad Replacement

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
Put on gloves to protect your hands.

Remove the following items:
1. Front seat
2. Cluster fascia panel, cluster
3. Audio assembly
4. Glove box
5. Crash pad side cover
6. Front pillar trim

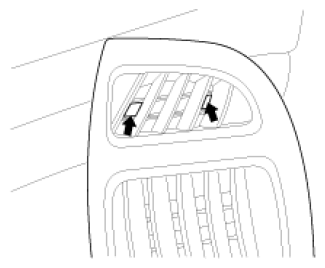

Insert the air vent remover (09840-1M100) into the air vent hole.

Fig 1: Identifying Air Vent Remover Insertion Point
Courtesy of KIA MOTORS AMERICA, INC.

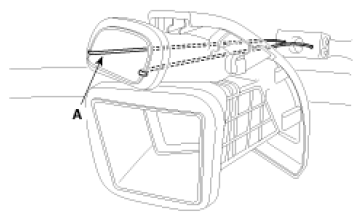

Air vent remover (09840-1M100 (A)) should be aligned and hung at the end of the air vent.

Fig 2: Aligning Air Vent Remover (Rear View)
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- To prevent the damage of air vent, air vent remover should be aligned and hung at the end of the air vent.
Remove the side air vent (B) by pulling the air vent remover (A).

Fig 3: Removing Side Air Vent Using Air Vent Remover
Courtesy of KIA MOTORS AMERICA, INC.

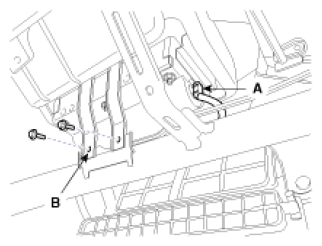

Disconnect the passenger's air bag connector (A). Loosen the bolts (B).

Fig 4: Identifying Passenger's Air Bag Connector & Bolts
Courtesy of KIA MOTORS AMERICA, INC.

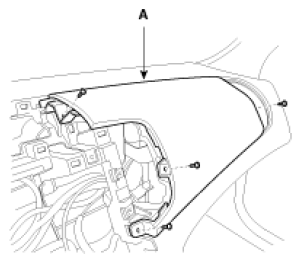

Remove the air bag module cover (A).

Fig 5: Identifying Passenger's Air Bag Module Cover
Courtesy of KIA MOTORS AMERICA, INC.

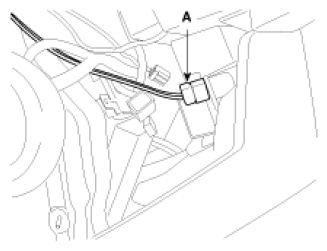

Disconnect the connector (A).

Fig 6: Identifying Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the photo sensor (A).

Fig 7: Identifying Photo Sensor
Courtesy of KIA MOTORS AMERICA, INC.

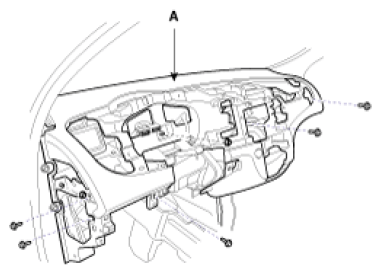

After loosening the mounting bolts and nuts, remove the crash pad (A).

Fig 8: Identifying Crash Pad
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
