Audio Assembly Replacement

  1. Remove the center fascia panel.
  2. After loosening the audio assembly mounting screws, then remove the audio assembly (A).

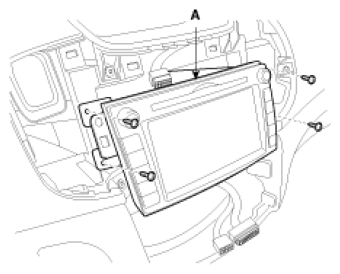

    Fig 1: Identifying Audio Assembly & Mounting Screws
    G06495865Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connectors (A).

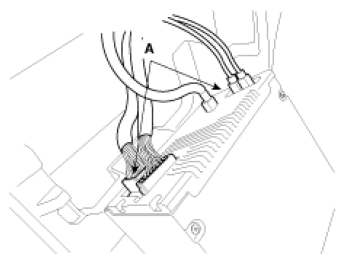

    Fig 2: Identifying Audio Assembly Connectors
    G06495866Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
