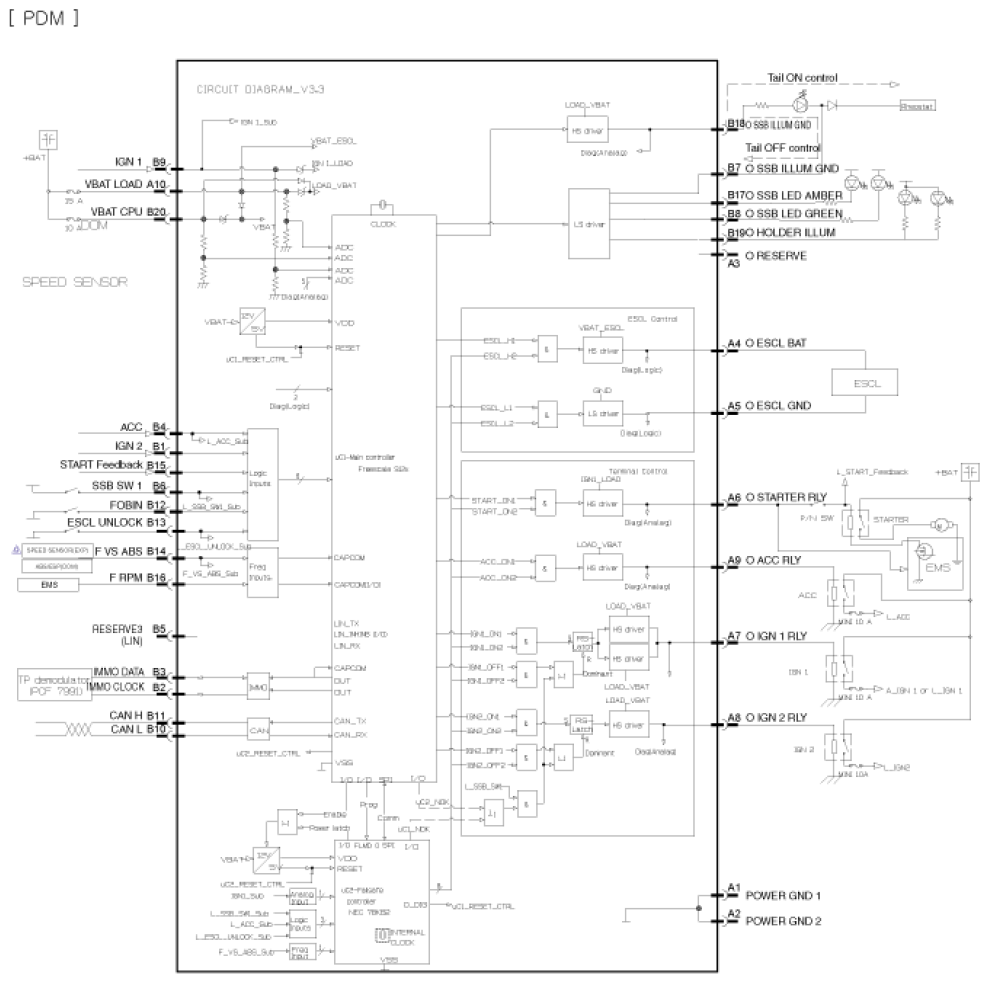

Home >> Kia >> 2010 >> Forte EX, Standard >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Button Engine Start System >> PDM (Power Distribution Module) >> Schematic Diagrams >> System Circuit Diagram
