Home >> Kia >> 2010 >> Forte EX, Standard >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Button Engine Start System >> ESCL (Electronic Steering Column Lock) >> Components and Component Locations >> Component

Components and Component Locations: Component

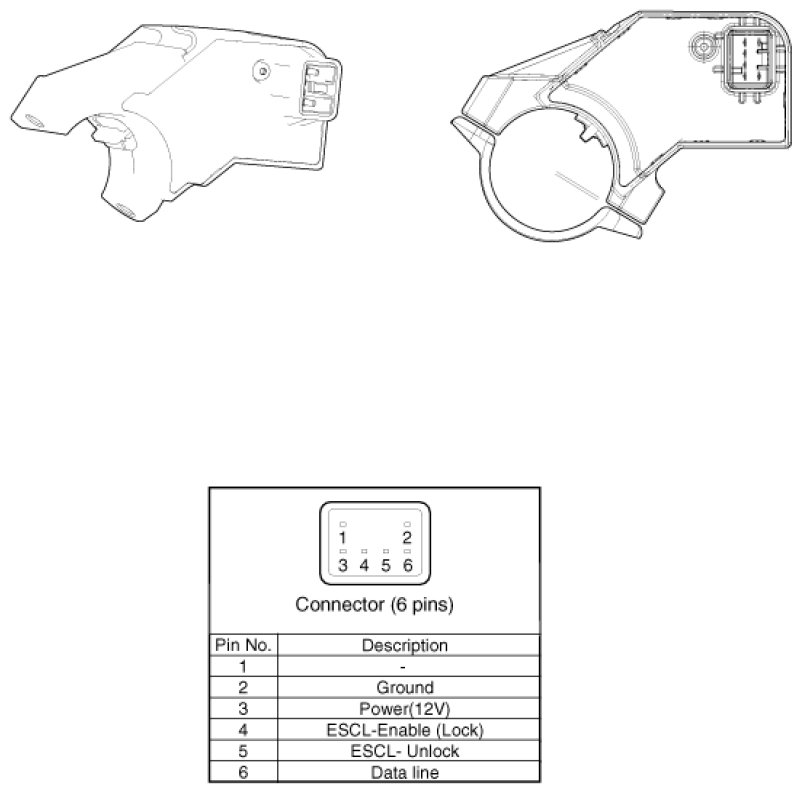

Fig 1: Identifying ESCL (Electronic Steering Column Lock) & Connector Terminals

G06496493

Courtesy of KIA MOTORS AMERICA, INC.
