Description and Operation (A4CF2): Description

INHIBITOR SWITCH SPECIFICATIONS AND FUNCTION

Sensor type	Type : ROTARY Available temperature range : -40~150°C (-40~320°F) Tightening torque : 10~12Nm (1.0~1.2kgf.m, 7~8lb-ft)
Function	Detect the position of select lever through the contact switch. It makes starting possible in "P" and "N".

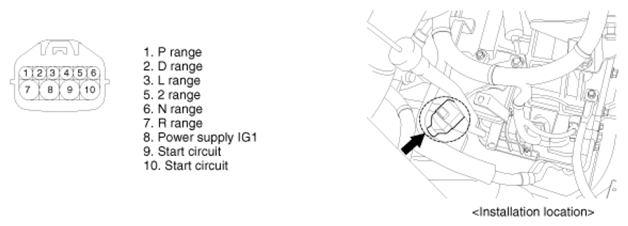

Fig 1: Identifying Inhibitor Switch Installation Location & Terminals

Courtesy of KIA MOTORS AMERICA, INC.

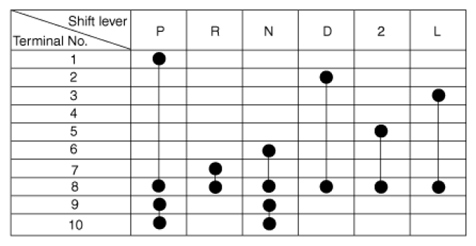

Fig 2: Shift Lever & Terminals Chart

Courtesy of KIA MOTORS AMERICA, INC.
