Components and Components Location: Components

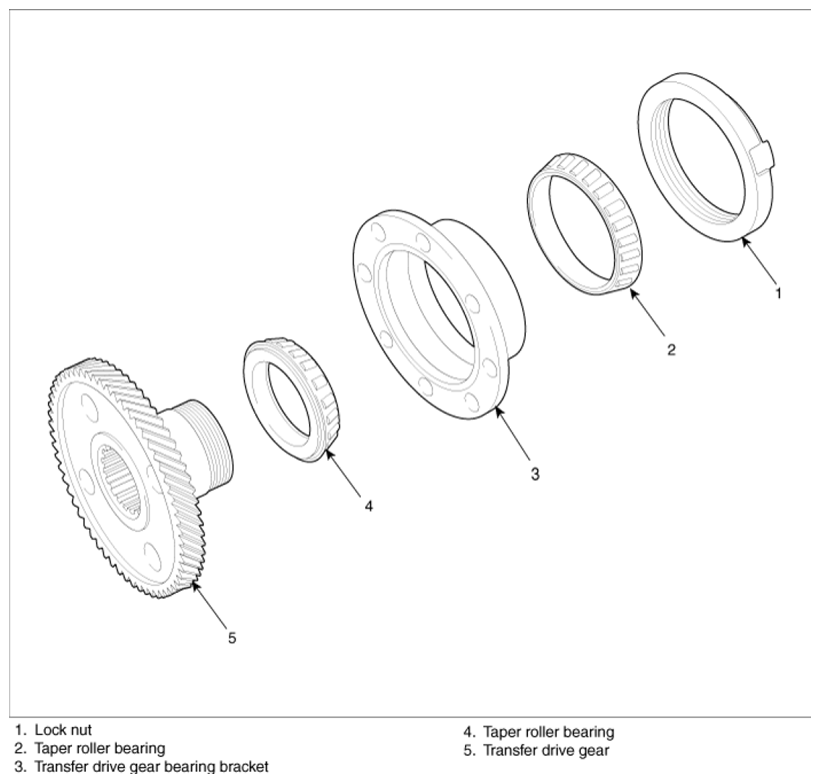

Fig 1: Identifying Transfer Drive Gear Components

G06798952

Courtesy of KIA MOTORS AMERICA, INC.
